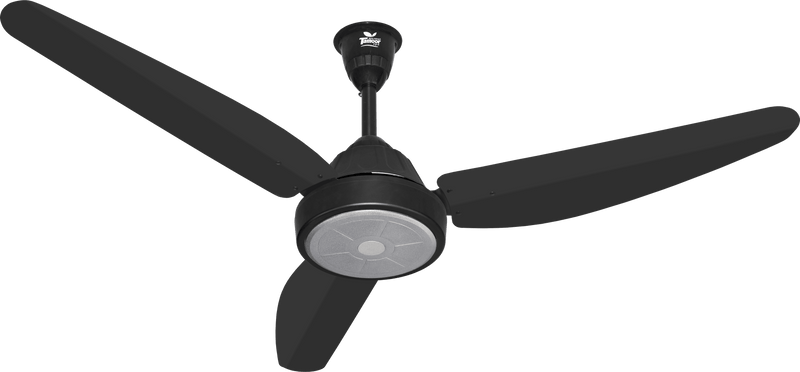

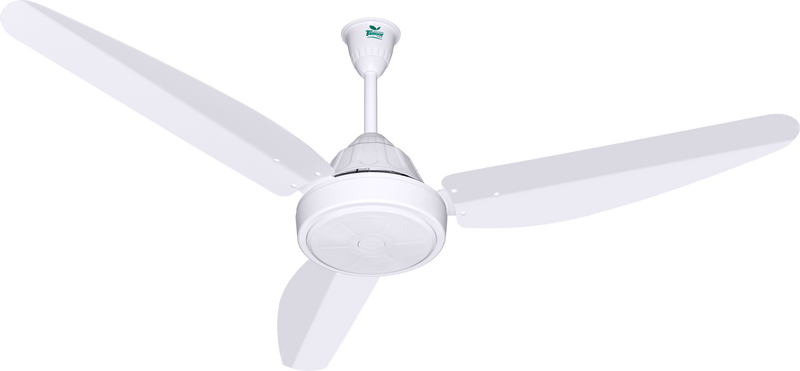

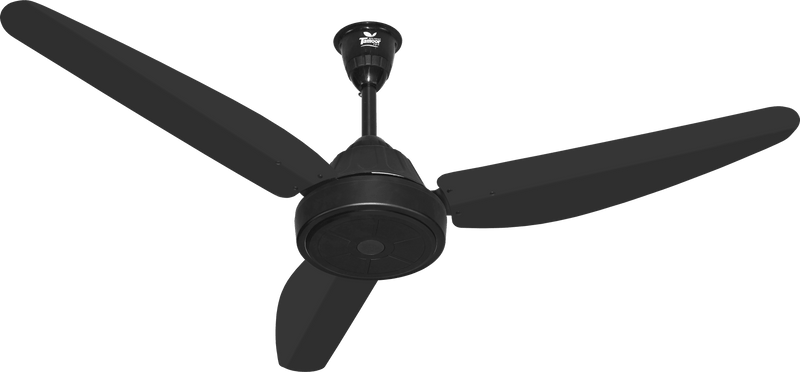

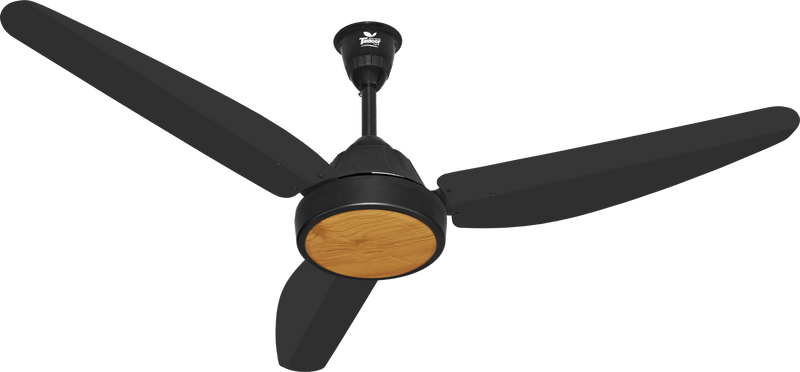

Magnum Model | Eco-Smart 30 Watt

Rs.13,300.00
SALE % OFF
  • 30Watt
  • Eco-Smart
  • rf remote

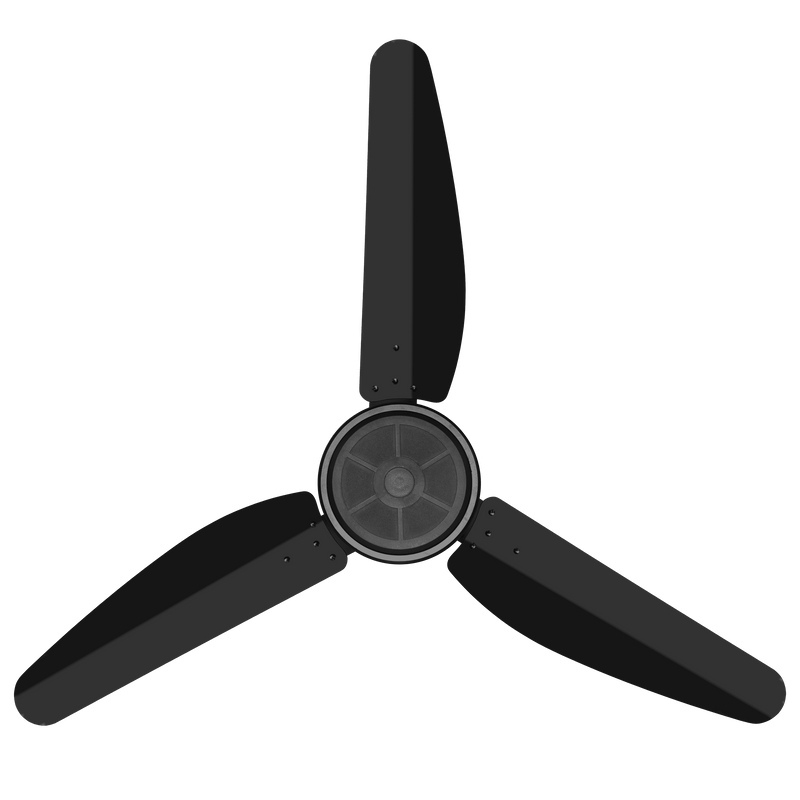

Magnum Model Eco-Smart 30 Watt Fan Pakistan's first IoT-enabled fan. Experience unprecedented control and convenience from anywhere through your smartphone.

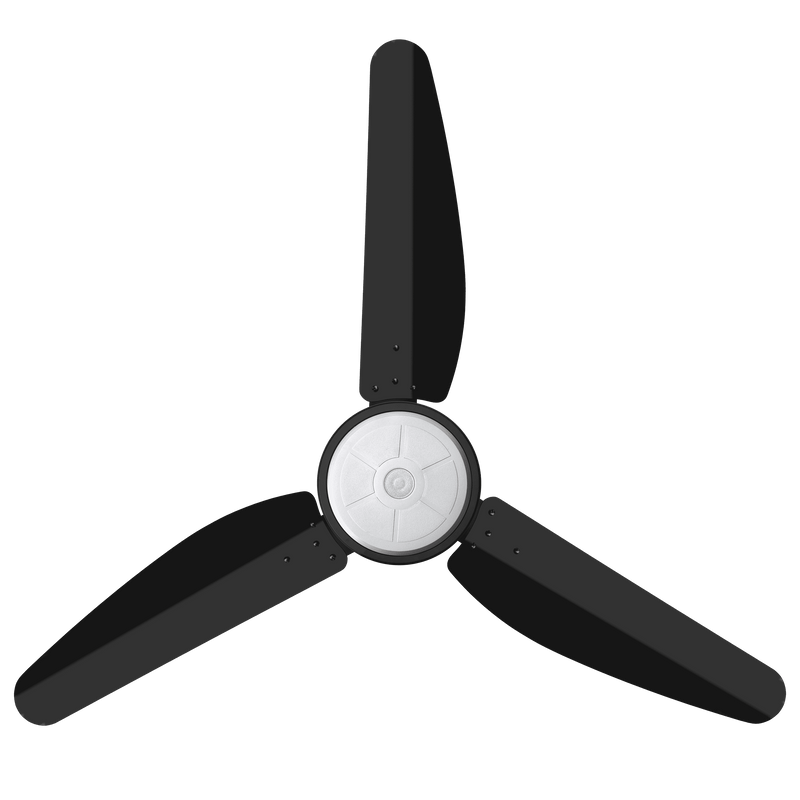

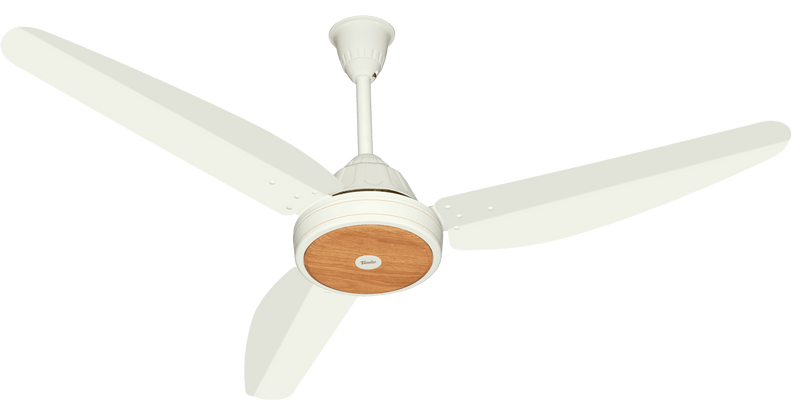

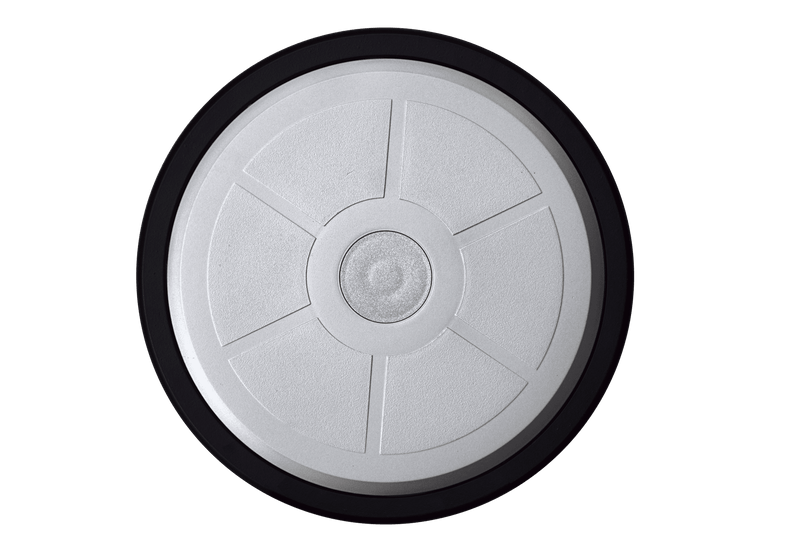

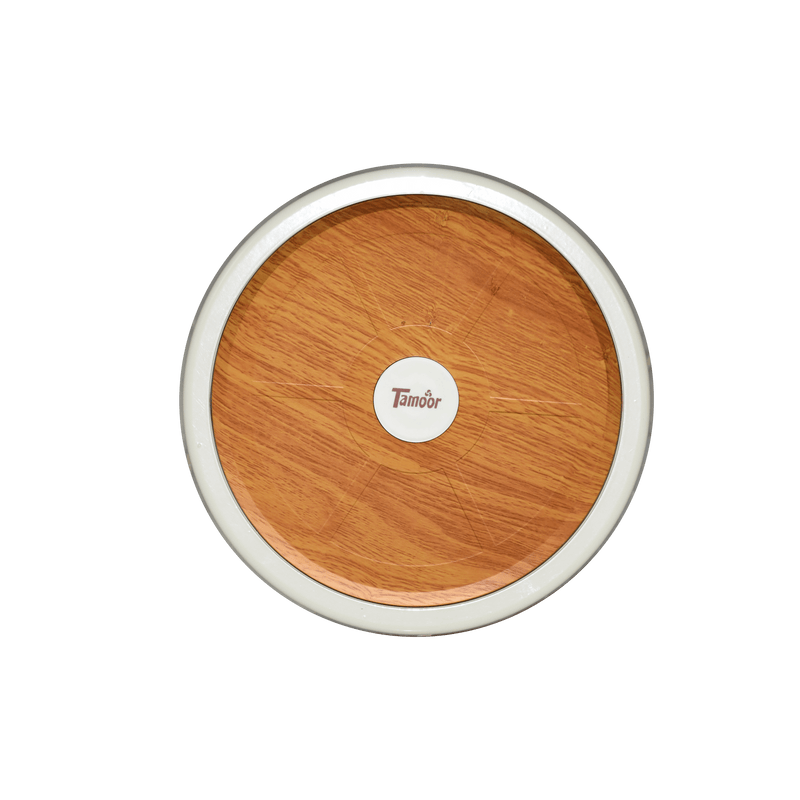

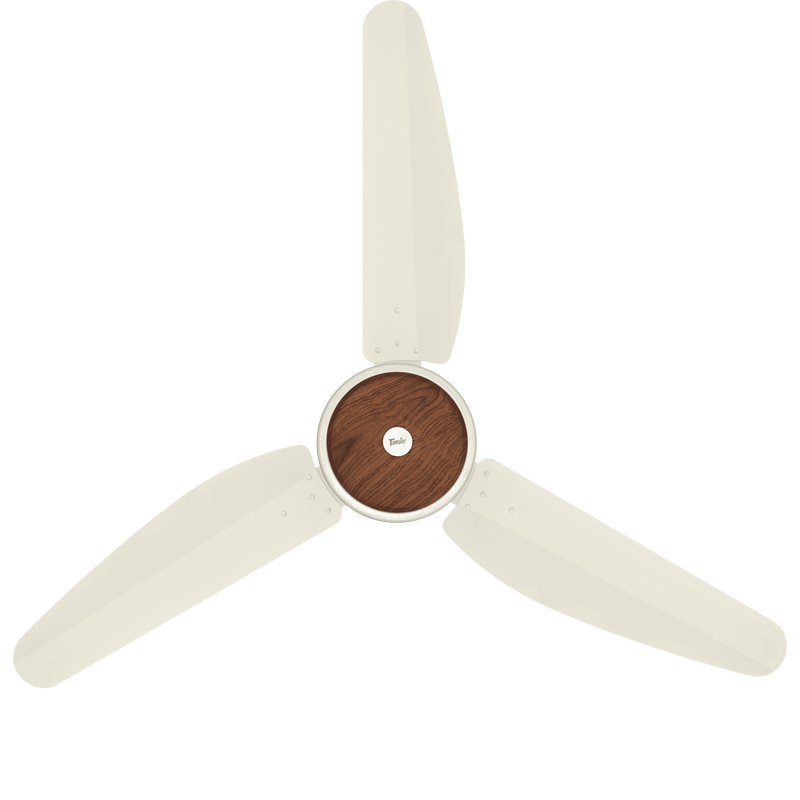

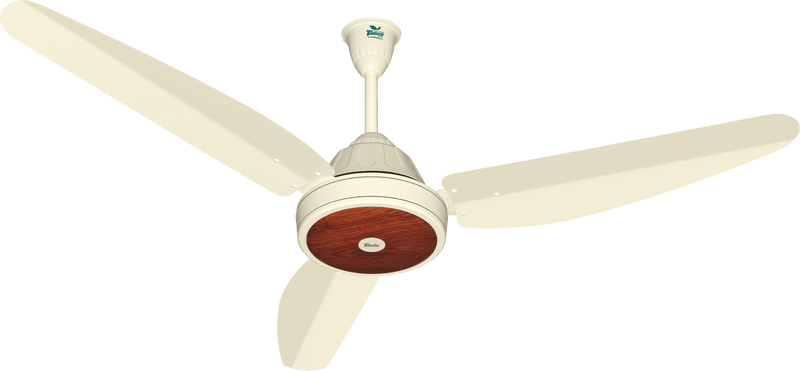

Color
Size
Wifi Enabled

This is what makes us stand out from the competition

  • Specification

  • FeaTUReS

  • Installation Guide

  • How to Connect

  • Product Warranty

  • Reviews

  • Size Available: 56"
  • Motor Type: PMSM
  • Input Voltage AC: 90V-290V
  • RPM: 360≤
  • Power: 30 Watt
  • Speed Control: 6 Speed Remote & Wifi Controlled
  • Power Factor: 0.99
  • Blades: 3 Blades
  • Speed: 6 Speed
  • Remote: RF(Radio Frequency)
  • RF (Radio Frequency with timer Function 1h- 6h)
  • Operates on Smart Life App and Touya
  • Works with Amazon Alexa and Google Home
  • Can control your fan from your phone
  • PMSM (Permanent Magnet Synchronous Motor) with High Power Factor.
  • 30-Watt Power Consumption on full speed
  • Save Up to 70% of Energy Consumption as compared to Conventional Fan(100-watt)
  • High power factor
  • NoiselessMotor
  • 99% CopperWinding
  • Silicon Coated Electric Steel SheetArmature
  • RF Remote Control with Auto off timer function1h-6h
  • 10% Higher Air Delivery as compared to Conventional Fan(100Watt)
  • Stable Performance on low and high Voltage (140V~ –240V~)
  • Under and Over Voltage Protection (110V~ –280V~)

WARNING:

BE SURE TO TURN OFF THE ELECTRICAL SUPPLY AT THE CIRCUIT BREAKER BEFORE INSTALLATION.

INSTALLATION MUST BE DONE BY A QUALIFIED ELECTRICIAN ONLY.

DO NOT ATTEMPT TO INSTALL THE UNIT YOURSELF.

DO NOT USE WITH A DIMMER. ( IMPORTANT: using with a dimmer will void the warranty )



CAUTION:

Improper installation may result in a risk of fire, electrical shock, or injury to persons.
Be sure the fan is to be connected to the grounded outlet box.
It’s ESSENTIAL that blades be NO LESS THAN 2.3 meters from the floor and that adequate clearance exists between the fan and adjacent walls, furnishings, etc.
If the fan is operating abnormally, cut the power off immediately for inspection.
T indicates suitable for tropical climates.
Ta-Ambient temperature 45 C.
Children should be supervised to ensure that they do not play with the appliances.


CLEANING:

Disconnect the electrical supply for safety purposes. Use a cloth with a neutral cleaning agent to clean the fan. Then wipe it with a dry cloth. DO NOT IMMERSE THE MOTORHEAD IN WATER.

Remote Paring Guide for Eco Smart30 Watt Fans:

  • Turn on fan
  • As soon as you turn on the fan press pair button
  • Hold the button for 10-15 sec
  • You will hear the beep sound
  • Your fan has been paired with your remote.
Hey Google
Amazon Alexa
Google Home
Tuya Smart

Connection Procedure:

Certainly! Below is a step-by-step connecting procedure to pair a Tamoor Fan 30 Watt with the Smart Life or Tuya app:

  • Install Smart Life or Tuya App:

– Download and install the Smart Life or Tuya app from your device’s app store.
– Open the app and sign up using your email address.

  • Access Device Addition:

– Once logged in, navigate to the main screen of the app.
– Look for the “+” (plus) icon usually located in the top right corner of the screen.

  • Add Device:

– Click on the “+” icon to access a drop-down menu.

  • Select Device Addition:

– From the drop-down menu, choose the option to “Add Device.”

  • Search for Device:

– The app will initiate a search for available devices, and a radar-like animation will appear.

  • Identify Your Device:

– Your Tamoor Fan 30 Watt will appear on the screen with a random alphanumeric identifier (e.g., FG-6890-2).

  • Connect to the Device:

– Tap on your device (Tamoor Fan) from the list, and press the “Connect” button.

  • Establish Connection:

– Follow any on-screen instructions to complete the pairing process. This may involve connecting to the fan’s Wi-Fi network or entering a pairing code.

  • Confirmation:

– Once successfully connected, you will receive a confirmation message indicating that your Tamoor Fan 30 Watt is now paired with the Smart Life or Tuya app.

  • Control Your Fan:

– Return to the main screen of the app, and you will now be able to control your Tamoor Fan 30 Watt directly from your device. Adjust settings such as speed, oscillation, and other features as needed.

Inverter fan motors are covered by a 2-years repair warranty starting from the purchase date, subject to specific terms

Exclusions:

  • The repair warranty does not extend to damages from accidents, attempted repairs, negligence, or customer mishandling.
  • Motor burnout due to voltage fluctuations or water seepage (except waterproof ceiling fans) is not included.
  • Correct Motor Controller connections as per manual instructions are necessary.
  • Repair Warranty becomes void if Motor Controller sustains damage from being connected to a dimme sustains damage from being connected to a dimmer.
  • Warranty does not encompass breakage of parts.
  • Components of fans, including remotes and Motor Controller, have a 1-year repair warranty from the purchase date.
  • To the make a authorized repair dealer. warranty claim, the warranty card must be completed, signed, and stamped by the authorized dealer.
  • Warranty card alterations, such as cutting or overwriting, will not be accepted.
  • In cases not covered by the repair warranty, service and replacement charges will be applied.
  • Replacement for non-repairable manufacturing faults necessitates approval from the authorized service provider.
  • The company is not accountable for indirect, incidental, or consequential damages arising from the usage of Tamoor Fan products
  • Replacement Warranty is valid for 10 Days only from the date of purchase after that product will not be replaced instead charges will be applied for any components repair and replacements.
